Part 2 – Launch EC2 Instance for Active Directory Server and RRAS Server

Launch EC2 Instance for Active Directory Server

1. Go to EC2 section
2. Launch Windows 2012 R2 Base
3. In our example we use size t2.small – but can be any type
4. Make sure that you going launch this instance inside private subnetwork. Also set up primary local IP – in our case we apply 10.20.2.10

DC

5. You can increase the size of root volume – it’s come handy over time when you will patch your Widows Server. I would recommend set it up to 70GB or more. In our example we set this up to 100GB
6. Add some name so you can recognize what instance is what – e.g. MyDC

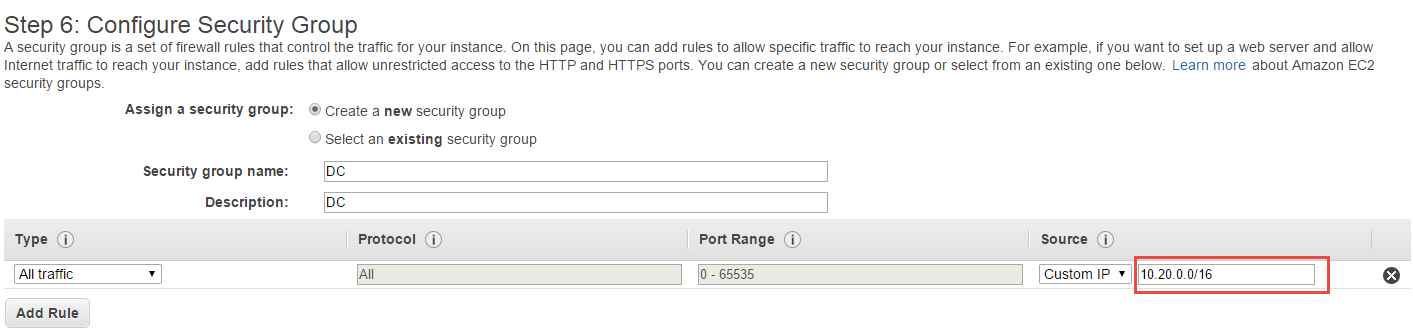

7. Create new security group. Allow all traffic from your VPC. In our example from 10.20.0.0/16

DC

8. Apply existing or create a new key pair. Launch instance.

Launch EC2 Instance for RRAS server

1. Go to EC2 section
2. Launch Windows 2012 R2 Base
3. In our example we use size t2.medium – but can be any type
4. Make sure that you going launch this instance inside the public subnetwork. Also set up primary local IP – in our case we apply 10.20.1.10
5. You can increase the size of root volume – it’s come handy over time when you will patch your Widows Server. I would recommend set it up to 70GB or more. In our example we set this up to 100GB
6. Add some name so you can recognize what instance is what – e.g. MyRRAS
7. Create new security group as allow following traffic:

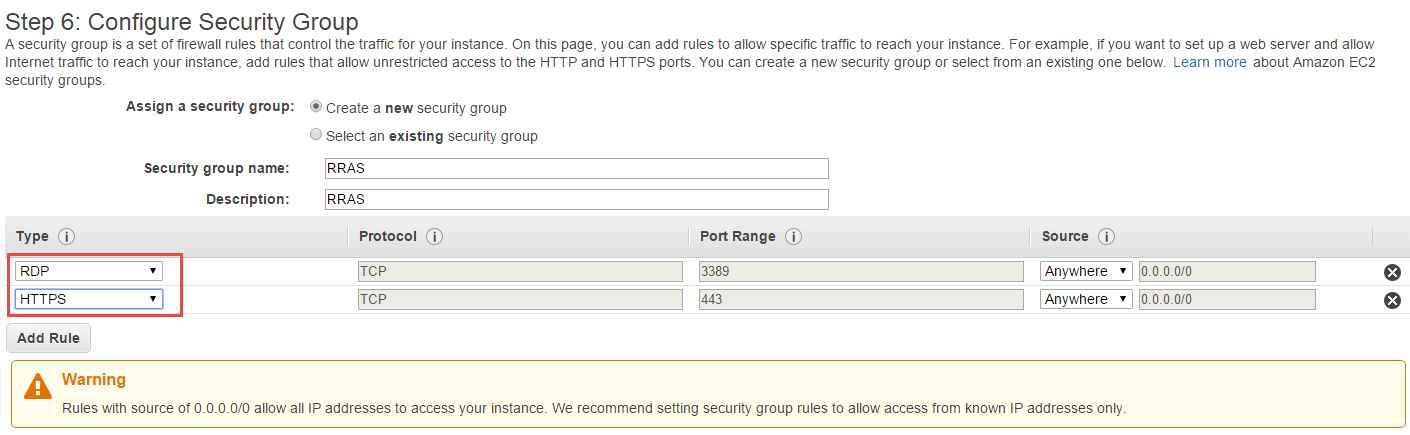

a. RDP – for security reason you should allow traffic only from you external IP. In our example we leave it full open 0.0.0.0/0
b. HTTPS allows from anywhere 0.0.0.0/0. If you know IP addresses from which users will be VPN you can limit HTTPS connection to those IPs

RRAS

8. Apply existing or create a new key pair. Launch instance.

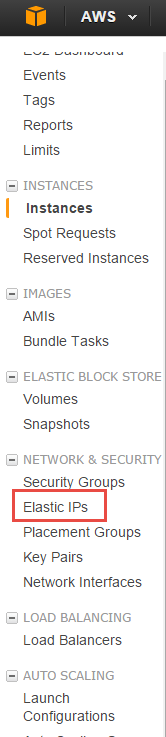

9. Go to Elastic IP

RRAS

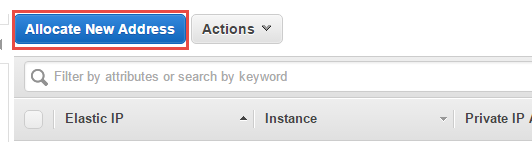

10. Click Allocate New Address

RRAS

11. Select VPC

RRAS

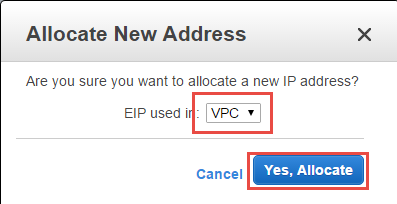

12. Click Yes, Allocate

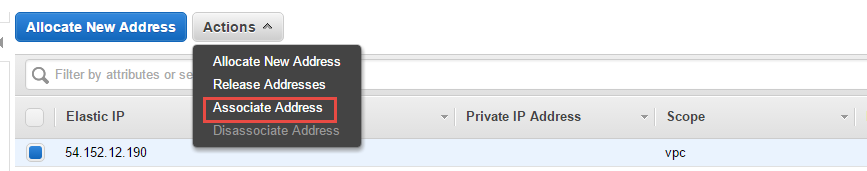

13. Select new IP and from Actions select Associate Address

RRAS

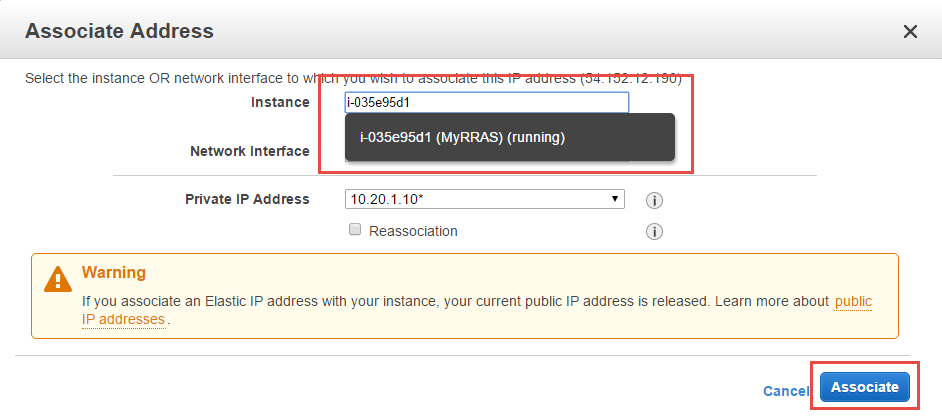

14. From the instance list select your RRAS server instance and click Associate

RRAS

, ,
